SEGA: A Stepwise Evolution Paradigm for Content-Aware Layout Generation with Design Prior

1Baidu Inc., China 2Nanjing University, Nanjing, China 3Harbin Institute of Technology, China 4Kuaishou Technology, China
ICCV 2025 (Highlight)

Abstract

In this paper, we study the content-aware layout generation problem, which aims to automatically generate layouts that are harmonious with a given background image. Existing methods usually deal with this task with a single-step reasoning framework. The lack of a feedback-based self-correction mechanism leads to their failure rates significantly increasing when faced with complex element layout planning. To address this challenge, we introduce SEGA, a novel Stepwise Evolution Paradigm for Content-Aware Layout GenerAtion. Inspired by the systematic mode of human thinking, SEGA employs a hierarchical reasoning framework with a coarse-to-fine strategy: first, a coarse-level module roughly estimates the layout planning results; then, another refining module is leveraged to perform fine-level reasoning regarding the coarse planning results. Furthermore, we incorporate layout design principles as prior knowledge into the module to enhance its layout planning ability. Moreover, we present a new large-scale poster dataset, namely BIG-Poster with rich meta-information annotation. We conduct extensive experiments and obtain remarkable state-of-the-art performance improvement on multiple benchmark datasets.

-->

Approach: SEGA

dog

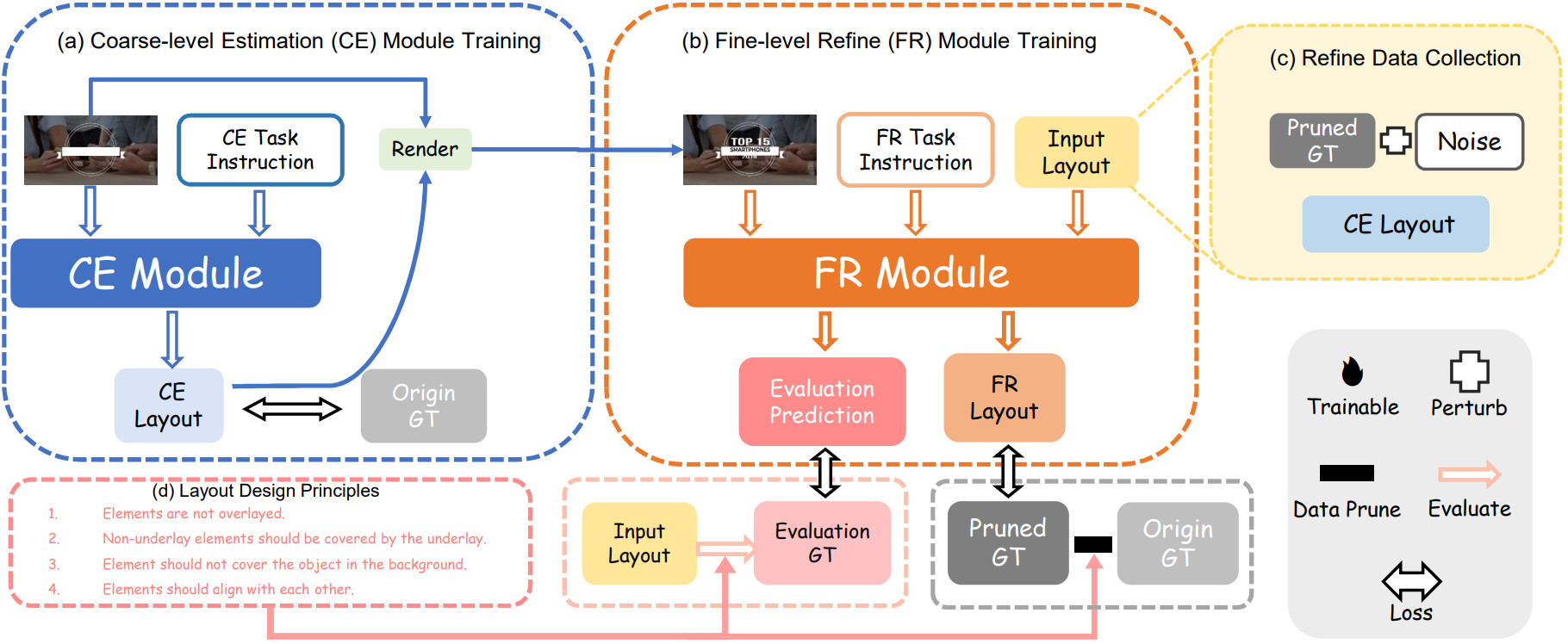

The training pipeline of SEGA includes two stages:

1) Stage-1: A Coarse-level Estimation (CE) module is trained to predict the layouts from scratch.

2) Stage-2: A Fine-level Refinement (FR) module is initialized by weights of CE module, and generate the final layout based on the results of Stage-1.

Dataset: BigPoster-100K

Our dataset includes a wide range of poster categories in real world scenario such as commercial, event, and product posters.

dog

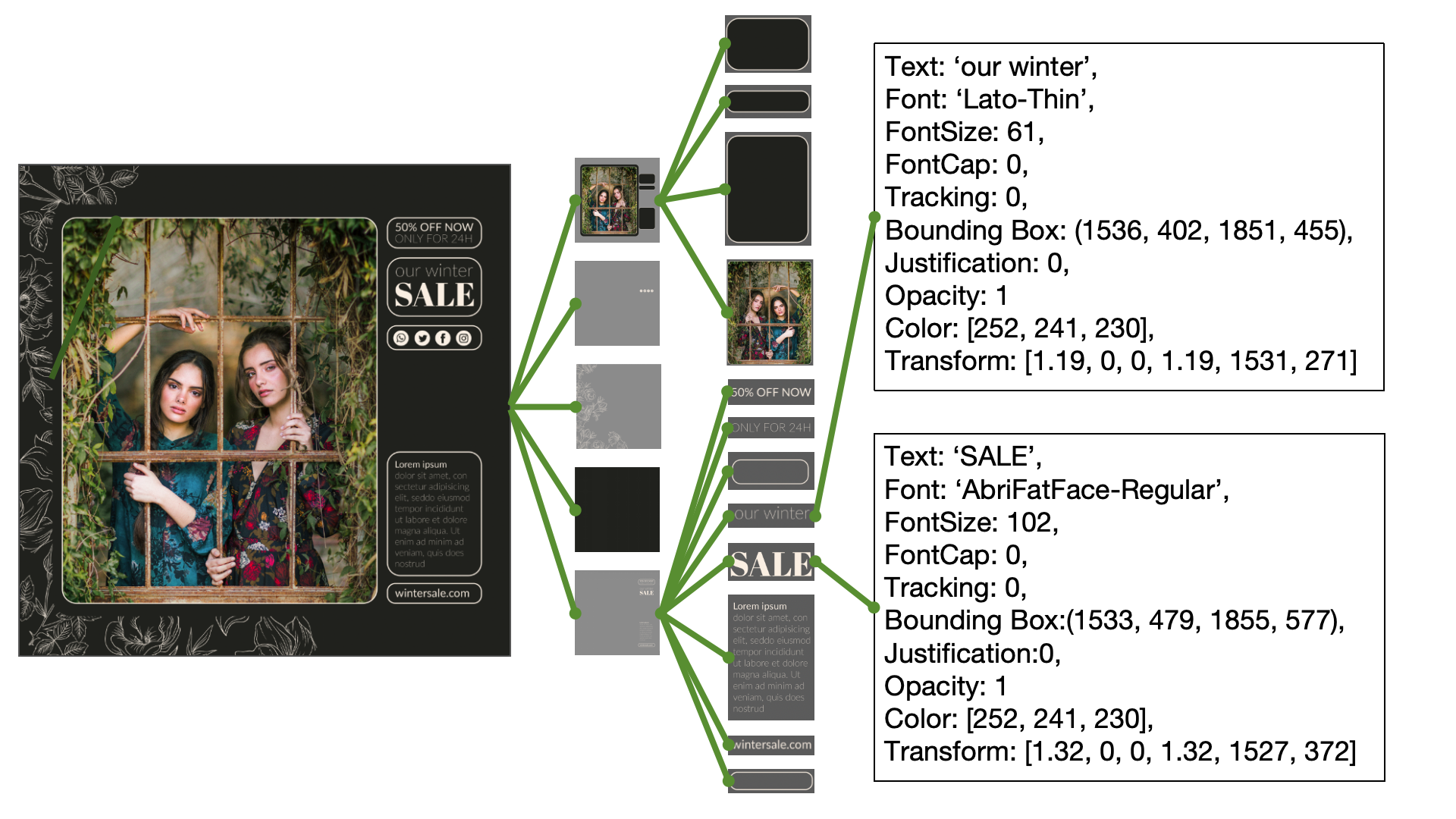

The hierarchical structure of each poster is preserved.

Poster Example 1

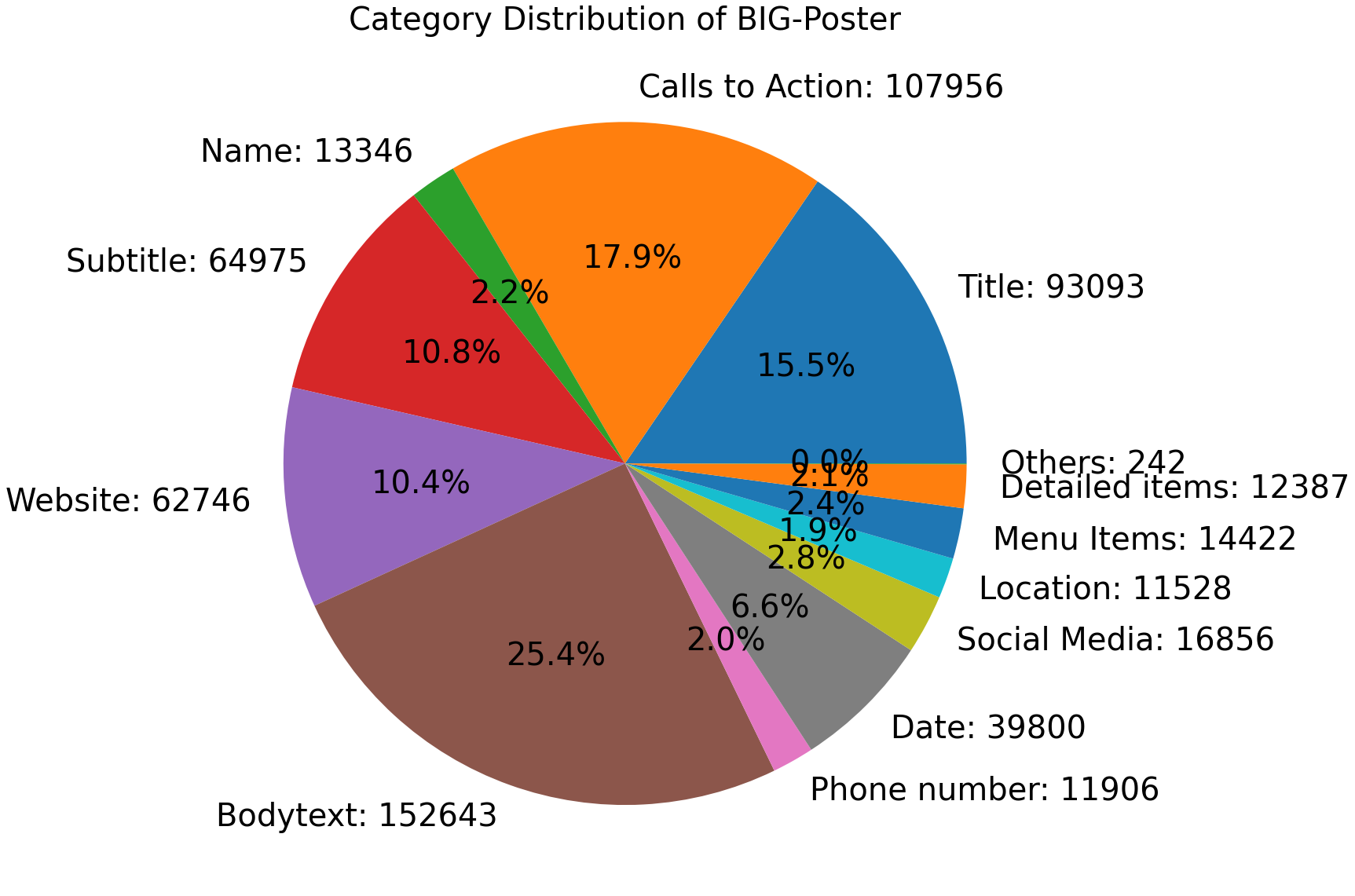

Category distribution of layout elements.

Poster Example 2

Comparison to State-of-the-Art Methods

Quantitative Results

Table.1 Experimental results on the PKU and CGL dataset.
Method PKU CGL
Graphic Content Graphic Content
Ali ↓ Ove ↓ Und_l ↑ Und_s ↑ Read ↓ Occ ↓ Ali ↓ Ove ↓ Und_l ↑ Und_s ↑ Read ↓ Occ ↓
Non-LLM Based
CGL-GAN (IJCAI, 2022) -0.0380-0.48000.01580.1320 -0.0470-0.65000.02130.1400
LayoutDM (CVPR, 2023) -0.1720-0.46000.02010.1520 -0.0260-0.79000.01920.1270
RALF (CVPR, 2024) 0.00310.00950.96860.89810.01380.1243 0.00230.00590.98580.96520.01800.1263
LLM Based
PosterLlama (ECCV, 2024) 0.00360.00800.98740.94970.01700.1380 0.00220.00420.98230.94630.02940.2453
SEGA w/o FR 7B 0.00370.00520.98730.94710.01500.1336 0.00230.00320.98170.95220.02980.2442
SEGA w/o FR (Ens-2) 7B 0.00350.00410.98920.96730.01440.1305 0.00210.00240.98790.96570.02960.2438
SEGA(7B) 0.00350.00330.98970.97310.01420.1286 0.00200.00170.99130.97820.02940.2430
GT 0.00360.00090.99500.94440.01190.1185 0.00230.00030.99370.94020.02960.2390
Table.2 Experimental results on the Crello dataset.
Method Rule-based Metrics Aesthetic Scores
Graphic Content SDL SQL STV SIO SMean
Ali ↓ Ove ↓ Und_l ↑ Und_s ↑ Read ↓ Occ ↓
Non-LLM Based
FlexDM (CVPR, 2023) 0.0122 0.1139 0.6889 0.5034 0.0516 0.4850 4.563 5.126 4.873 5.239 4.950
LLM Based
PosterLlama (ECCV, 2024) 0.0099 0.0238 0.9204 0.7378 0.0395 0.4041 5.292 5.796 5.263 5.819 5.542
SEGA w/o FR 7B 0.0102 0.0121 0.8206 0.6698 0.0304 0.4002 5.553 6.332 5.693 5.448 5.756
SEGA w/o FR (Ens-2) 7B 0.0100 0.0093 0.8501 0.7202 0.0285 0.3957 5.642 6.418 5.811 5.529 5.850
SEGA 7B 0.0086 0.0040 0.9337 0.8978 0.0282 0.3964 5.792 6.411 5.824 5.708 5.941
SEGA w/o FR 13B 0.0102 0.0093 0.8485 0.7315 0.0271 0.3948 5.923 6.624 6.253 5.991 6.197
SEGA w/o FR (Ens-2) 13B 0.0097 0.0075 0.8715 0.7715 0.0260 0.3874 6.128 6.652 6.058 5.822 6.165
SEGA 13B 0.0095 0.0025 0.9541 0.9270 0.0260 0.3907 6.149 6.745 6.348 6.038 6.320
GT 0.0100 0.0116 0.9643 0.8187 0.0259 0.3797 6.882 7.543 6.863 6.025 -

Qualitative Results

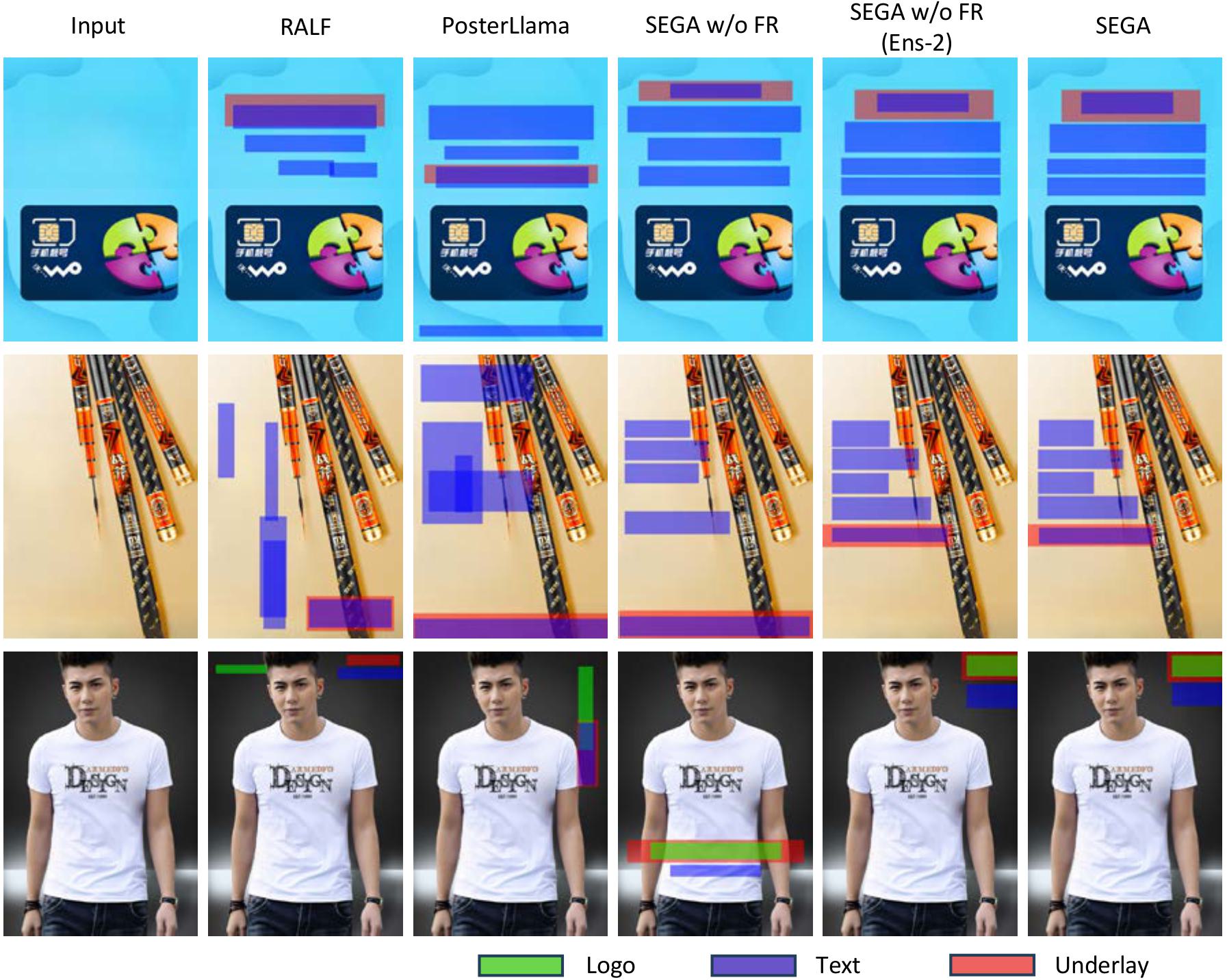

Qualitative Results on PKU dataset
dog

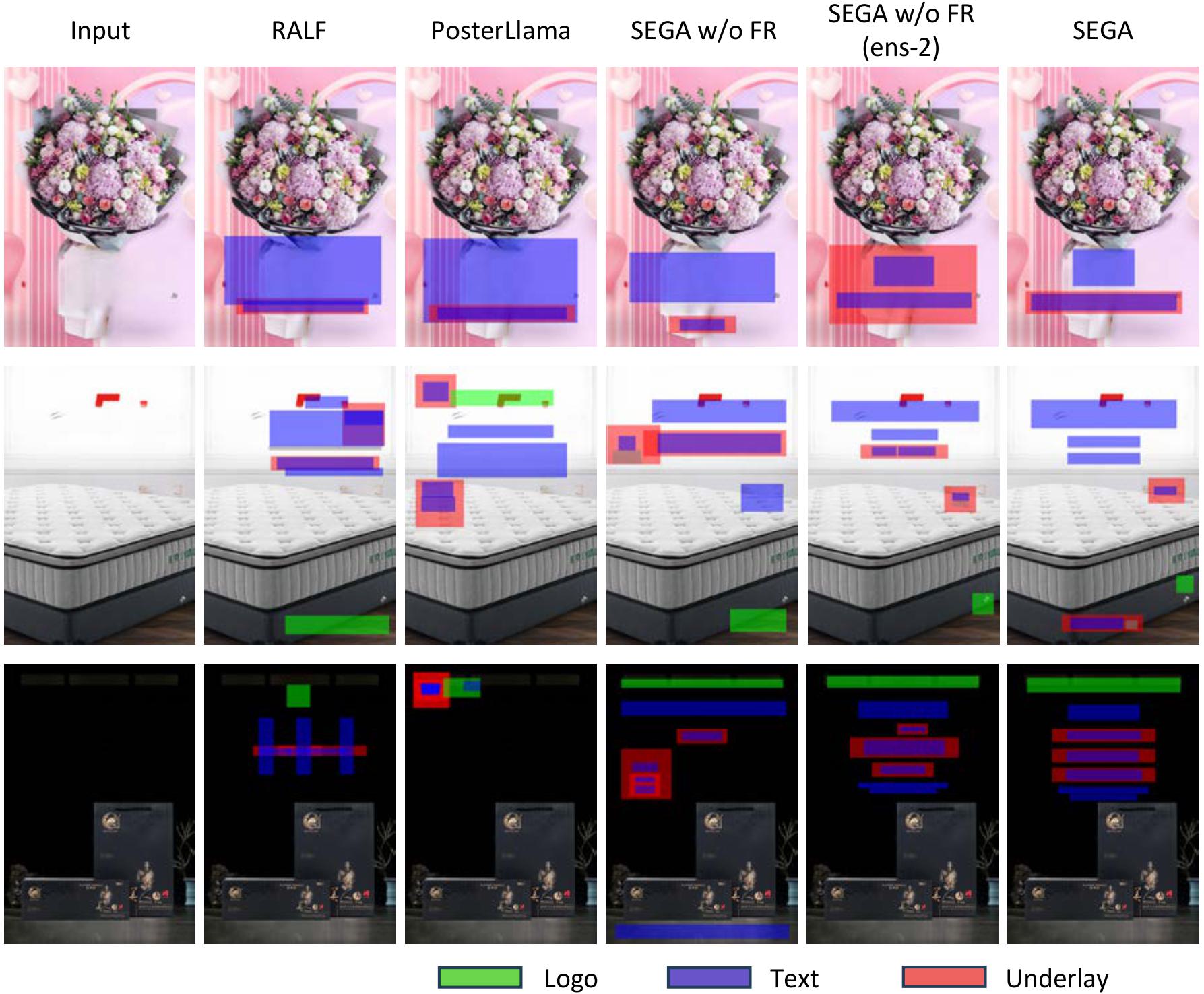

Qualitative Results on CGL dataset
dog

BibTeX

@article{wang2025SEGA,
  author    = {Haoran, Wang and Bo, Zhao and Jinghui, Wang and Hanzhang, Wang and Huan, Yang and Wei, Ji and Hao, Liu and Xinyan, Xiao},
  title     = {SEGA: A Stepwise Evolution Paradigm for Content-Aware Layout Generation with Design Prior},
  journal   = {ICCV},
  year      = {2025},
}
